PPF Installation Guide

Installation Care and Guidance for RoyMC Paint Protection Film

The RoyMC Paint Protection Film boasts unparalleled properties in the industry. To maximize its full benefits, please consult this guide thoroughly. Following these care instructions will enhance your vehicle’s durability, appearance, and value.

1. Before Installation – Surface Preparation

• Clean the vehicle’s surface thoroughly using a high pH detergent mixed with water.

• Clean the surrounding areas (e.g., entire hood, fender, headlights).

• Use high-pressure washer/air to remove debris from seams/openings.

• Clay bar or auto scrub the surface to remove embedded contaminants.

• Degrease with isopropyl alcohol if necessary and ensure the surface is fully dry.

• Wipe edges with pure isopropyl alcohol and lint-free wipes.

2. Tools and Mounting Solutions

Essential Tools:

• Cleaning squeegee

• Yellow Turbo Squeegee

• OLFA knife (carbon steel or ceramic blades)

• 32-ounce spray bottle or larger

• Heat gun (optional)

Mounting Solution:

• Use distilled/purified water (not tap water).

• Use neutral soap (e.g., Johnson Baby Shampoo without additives).

• Soap ratios by temperature:

  • 15°-23°C (60°-74°F): 2-3 drops per bottle

  • 24°-32°C (75°-90°F): 4-5 drops per bottle

• Avoid over-soaping to prevent adhesive weakening.

Alcohol (Tack) Solution:

• Use isopropyl alcohol (70% or 90%), diluted:

  • 9:1 water to alcohol (standard)

  • 8:2 for stronger tack

• Never use undiluted alcohol directly.

3. Ideal Installation Environment

Temperature Range: 15°-32°C (60°-90°F)

• Avoid direct sunlight or open-air settings.

If Over 32°C (90°F):

• Cool down vehicle and open the hood.

If Below 15°C (60°F):

• Warm the vehicle and use warm water in all solutions.

• Dry edges carefully with a heat gun (test with hand).

If Below 0°C (32°F):

• Follow cold weather instructions.

• Keep vehicle indoors at least 12 hours.

• Use infrared heaters if needed.

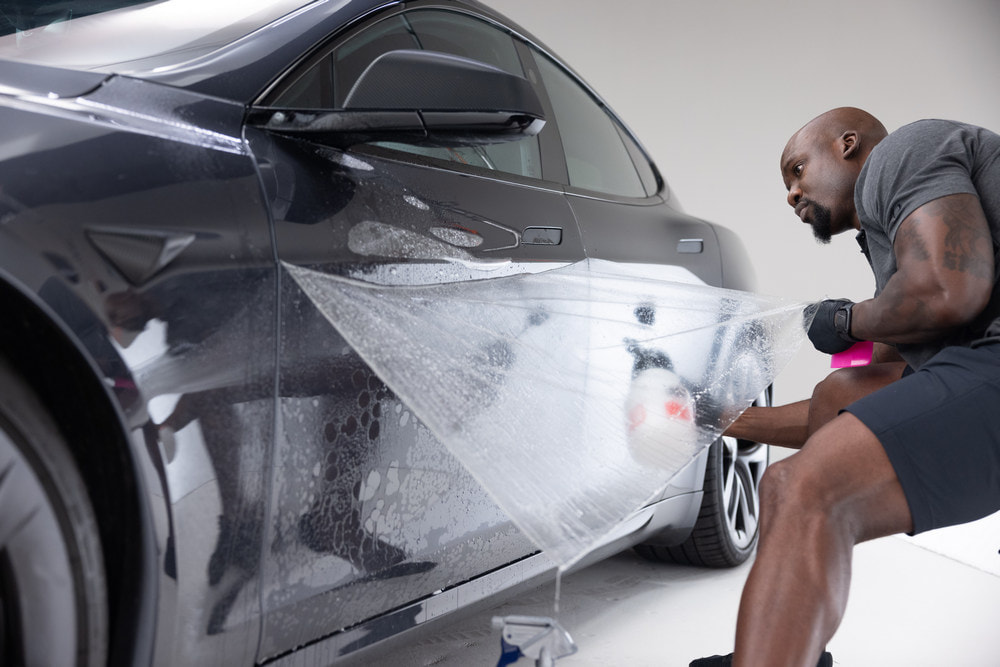

4. Seamless Installation Process

Hood:

1. Spray soap solution under the film.

2. Squeegee one side to tack it.

3. Stretch to the opposite side and tack.

4. Remove water with overlapping strokes.

Bumper:

1. Align and tack the center point.

2. Align around grille/sensors from center outwards.

3. Stretch and tack corners gently.

5. Pro Tips for Flawless Installation

Avoiding Fingerprints:

• Keep hands wet; wear gloves.

Removing Dirt/Contamination:

• Flip film adhesive-side up and clean.

• If not possible, spray under the film and gently wipe.

Eliminating Adhesive Lines:

• Lift film in a pocket-like shape.

• Push water away with squeegee first.

Removing Mars:

• Keep surface wet while squeegeeing.

• If needed, rest 20 minutes, then buff with alcohol + microfiber.

Water Bubbles:

• Avoid squeegeeing toward tack areas.

• Small bubbles (4–5mm) may dry on their own.

• Use a syringe or lift and reapply if needed.

6. Wrapping the Edges

• Cut film with 1–1.5cm (0.5–0.75") excess.

• Clean thoroughly with pure alcohol.

• Apply adhesion promoter if needed (not on outer visible areas).

7. Preventing Edge Lift

• Clean edges with alcohol, dry fully.

• Lay film flat—no overhanging.

• For non-wrap templates, leave 2mm gap from panel curve.

• Let film bond for 1–2 hours post-installation.

• To remove: pull at 45° angle toward yourself.

8. Cleaning and Maintenance

Car Wash:

• Wait 3+ days post-installation.

• Hand wash preferred.

• Avoid pressure washers (stay 45cm away if used).

Ceramic Coating:

• Safe to apply over RoyMC film.

Bug Removal:

• Use car shampoo and soft sponge.

• For tough spots, bug/tar remover + 15–20 minute soak.

Maintenance Tips:

• Clean wax/dirt at edges with alcohol + microfiber.

• Regularly clean bird droppings/insects.

• For stains: mild polishing compound (max once every 2 years)

Note: Always follow recommended temperatures, tools, and solutions to ensure proper adhesion and longevity of your RoyMC PPF.
